CHMT48V SMT Pick and Place Machine / Stencil Printer / Reflow Oven T962C Small SMT Line
(CHARMHIGH) YOUTUBE CHANNEL:
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA
Small SMT Production line:
1.
| Stencil Printer Technical Parameters |
| Type: | Manual |
| G.W: | 13kg |
| Maximum print Area: | 320*440mm |
| Packing size: | L 71cm*W 52cm*H 14cm |
2.
| Technical Parameter for CHMT48VA | Dimension | L 960mm*W 705mm*H 335mm |
| PCB Area | 10*10~355*355mm |
| XY Axis travel | 400*460mm |
| Z axis move range | 15mm |
| Pick and Place head | 2pcs |
| Mounting Speed | With vision 3000~4000cph; without vision
6000cph-7000cph (Note: cph means chip per hour) |
| Working Precision | ±0.025mm |
| Stack | 8mm=22 stack; 12mm=4 stack; 16mm=2 stack;
24mm=1 stack; Front IC=12 stack;
User-defined IC tray=20 stack |
| Vacuum pump | 2pcs in-build (mute) |
| Vision system | Up view and down view dual cameras |
| Computer system inside | Linux system inside, very stable, no need external PC |
| Compatible software | Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS..etc |
| Support files | .csv file |
| Touch screen | 7’’ (15.6cm*9.3cm) industry touch screen |
| Support packages | 0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89,TO-252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm) |
| Voltage | AC 110V/ 220V, 50/60HZ (supply the plug for your country) |
| Gross weight | 73kg (with wooden box packing) |
3. T962C Reflow oven parameter:
Brand: PUHUI
Model: T962C
Condition: Brand New From Factory
Soldering Max Area: 60 X 40 cm
Size: 68.4 X 50.4 X 22.5cm
Rated Power: 2500W
Process Period: 1~8 min
Supply: AC110V~ AC220V /50~60HZ
Pictures as follows:
1. Stencil printer Middle size 320*440mm

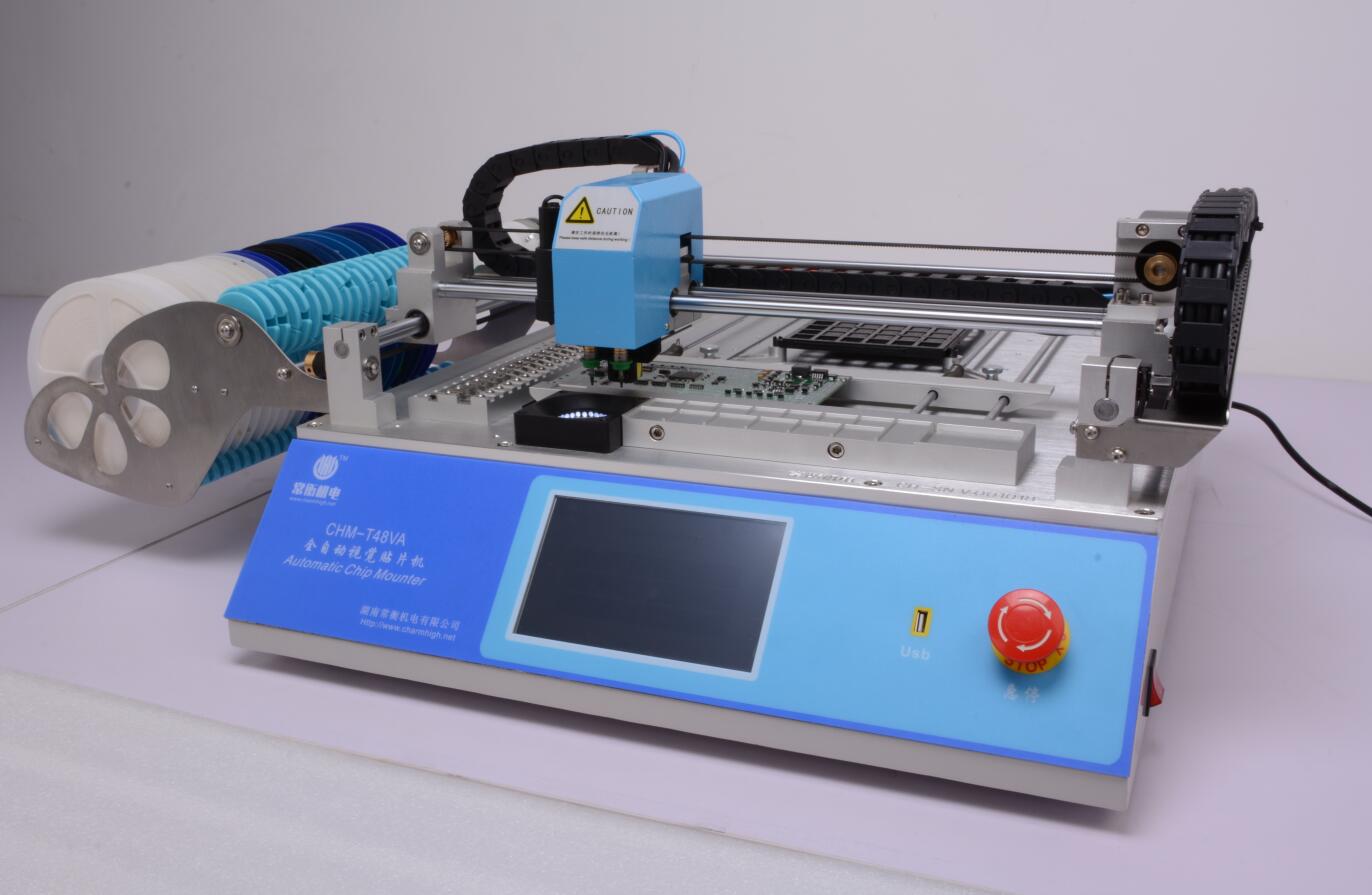

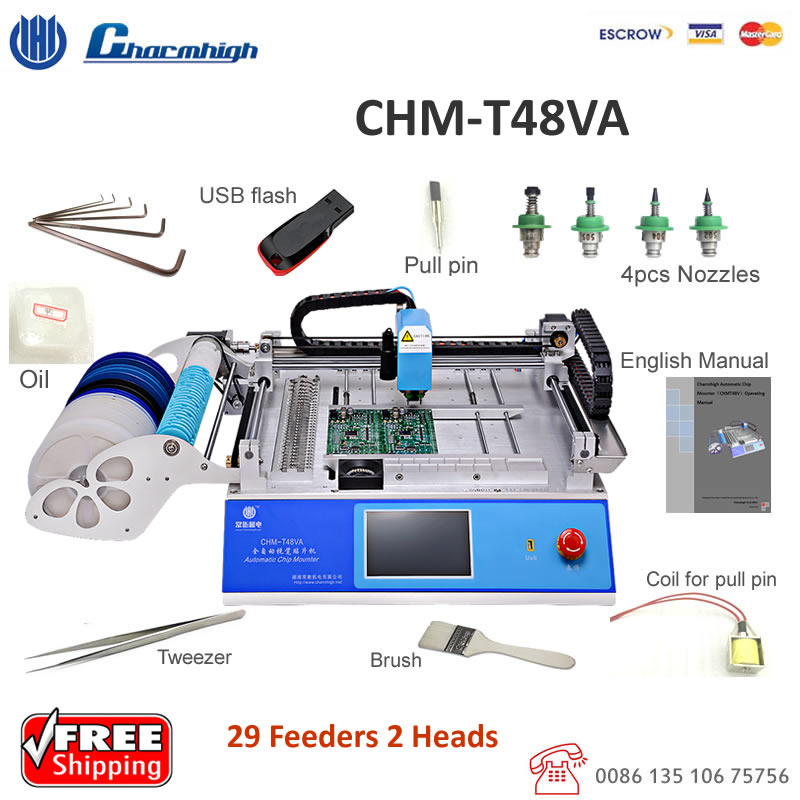

2. CHMT48VA Pick and place machine with Vision System
3. Reflow oven T962C 400*600mm 2500w
Applications industry:
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.
Q1: What is the lead time of your products? (How long do you need to prepare my goods?)
A: 2-3 days for 1-3 unit machine. 5-15 days for mass production orders (based on different quantities).
Q2: How will you deliver my goods to me?
A: We usually ship by international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their
goods rapidly. For bigger quantity, ship by air or by sea.
Q3: How long do I need to wait before my goods arrive?
A: 3-7 days for international express. 5-8 days for air transportation. 20-40 days for sea transportation.
Q4: What is your product quality?
A: Our raw materials are purchased from qualified suppliers, the best qaulity in China. And our engineers all have over 20 years expereinces in Machinery, ensure good quality and functions. Now CharmHigh's Quality and feedback is better than other brands in China.
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply. (Artificial damage except)
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale
service.
If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.
Each machine 100% test well before ship out.
